ARTAS® iXi Robotic Hair Restoration System

The Intelligent Hair Transplant Technology

The ARTAS® Robotic Hair Restoration System is the world's first intelligent hair transplant platform to utilize state-of-the-art robotic and artificial intelligence technology.

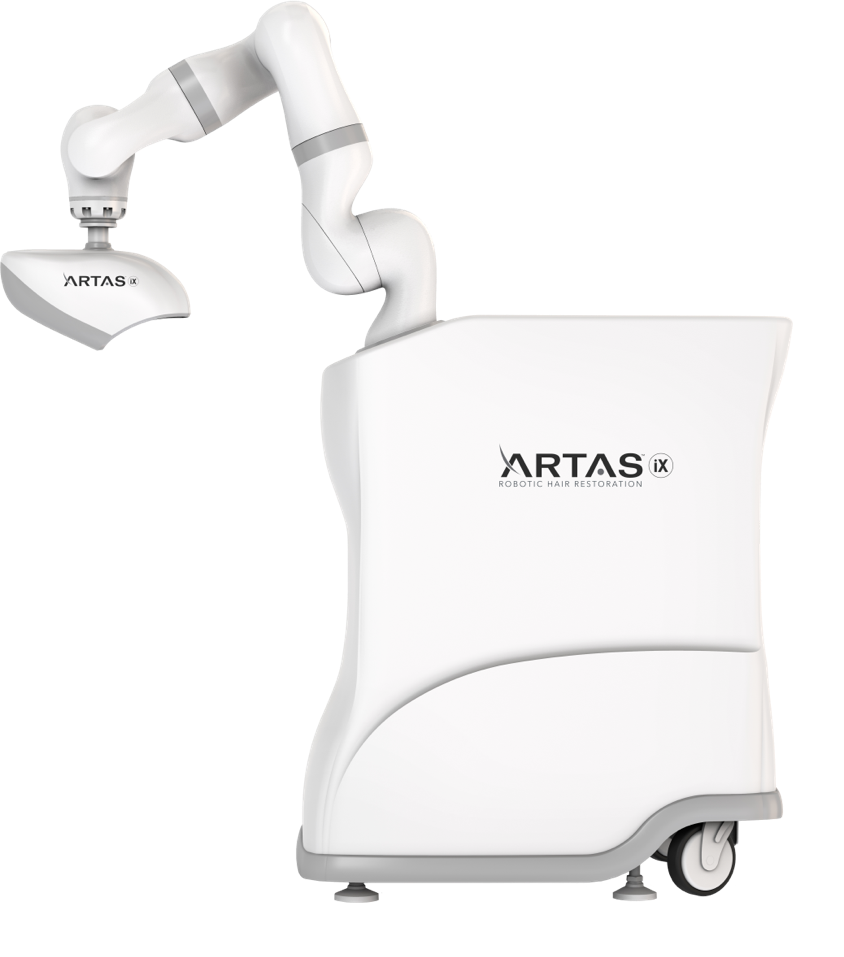

ARTAS® iXi Robotic Hair Restoration System

Intelligent and Precise Hair Restoration Procedures

Deliver a personalized hairline design for every patient with state-of-the-art precision, efficiency, and repeatability.


The ARTAS® iXi robotic hair restoration platform includes an advanced multi-camera stereoscopic vision system with 44-micron resolution. This system, along with the device’s seven-axis robot arm, enables physicians to deliver automated procedures with the greatest accuracy. The ARTAS® robotic hair transplant system is able to intelligently analyze and select appropriate grafts from the donor area without the risk of linear scarring. The ARTAS® iXi machine also accurately identifies and develops optimal recipient sites while simultaneously implanting each harvested graft. By protecting the patient’s existing terminal hair, the ARTAS® robotic hair transplant system works to maintain a more natural appearance in both the donor site and the recipient area.

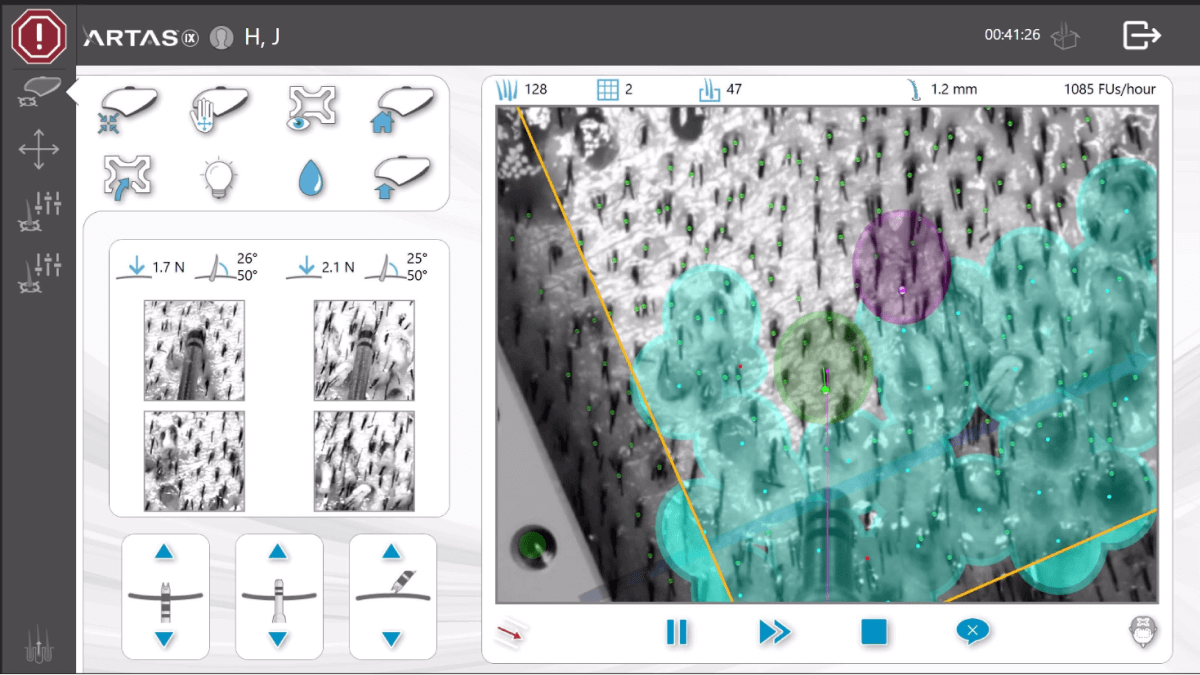

High Definition Multi-Camera Stereoscopic Vision System

With 44-micron resolution, the ARTAS® iXi system accurately visualizes and analyzes each follicular unit, while repeatedly recognizing and identifying key features at the rate of 60 times per second

  • MORE
    • Image-guided robotic alignment technology accurately and precisely harvests each follicular unit at the optimal angle

Artificial Intelligence Integration

To deliver robotic hair restoration, advanced AI consistently analyzes, monitors and tracks each hair follicle's characteristics–position, angle, size, and orientation–and adjusts for patient movement

  • MORE
    • AI-optimized harvesting, intelligent graft analysis and randomized selection from donor area ensures high-quality grafts and natural-looking results
    • Machine learning recognizes and digitally maps past, current and future grafts, and learns new patterns to deliver continuous improvement

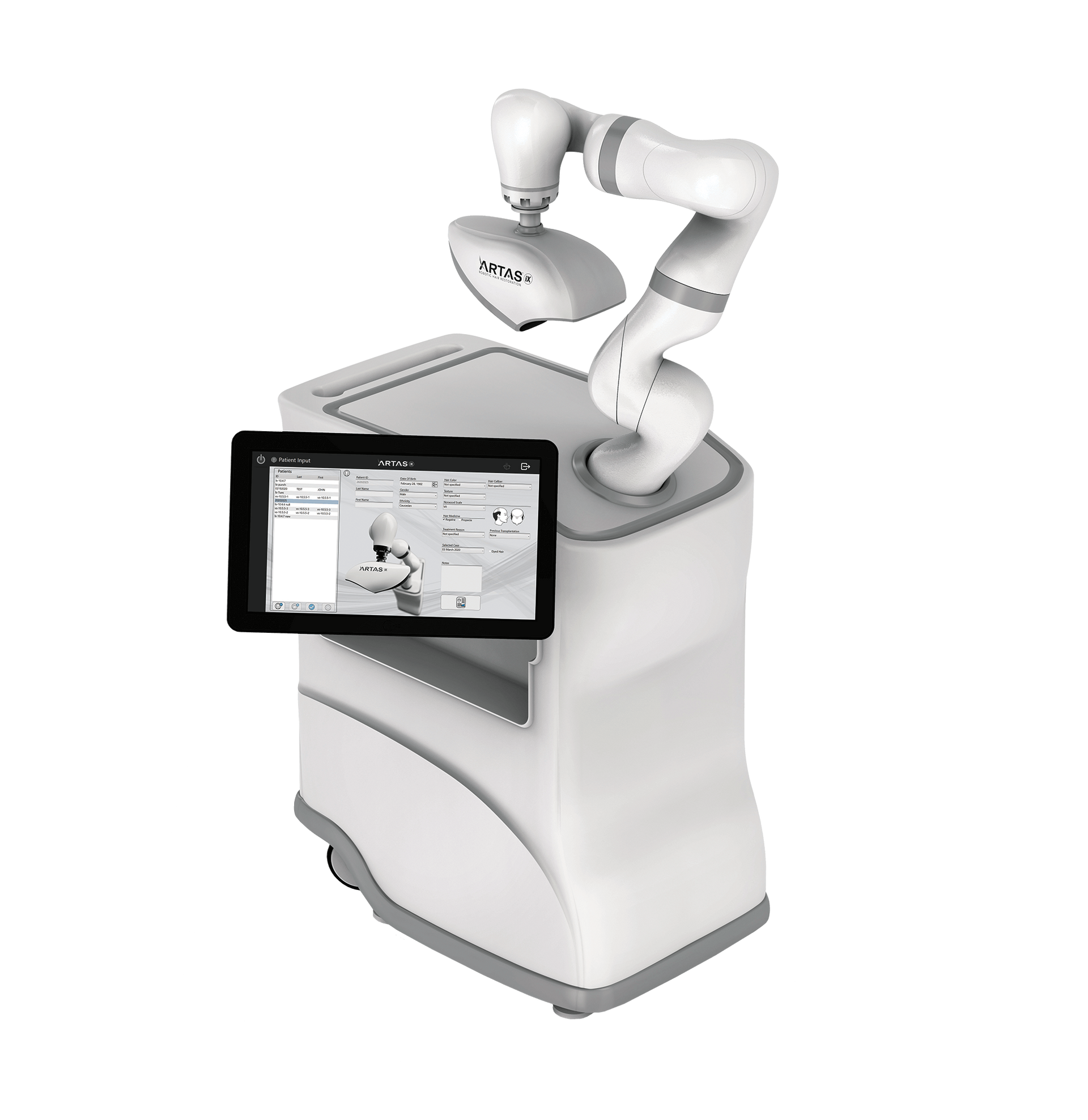

Touchscreen User Interface

Intuitive, graphics-based user interface with IoT capabilities enhances physician collaboration with technology

  • MORE

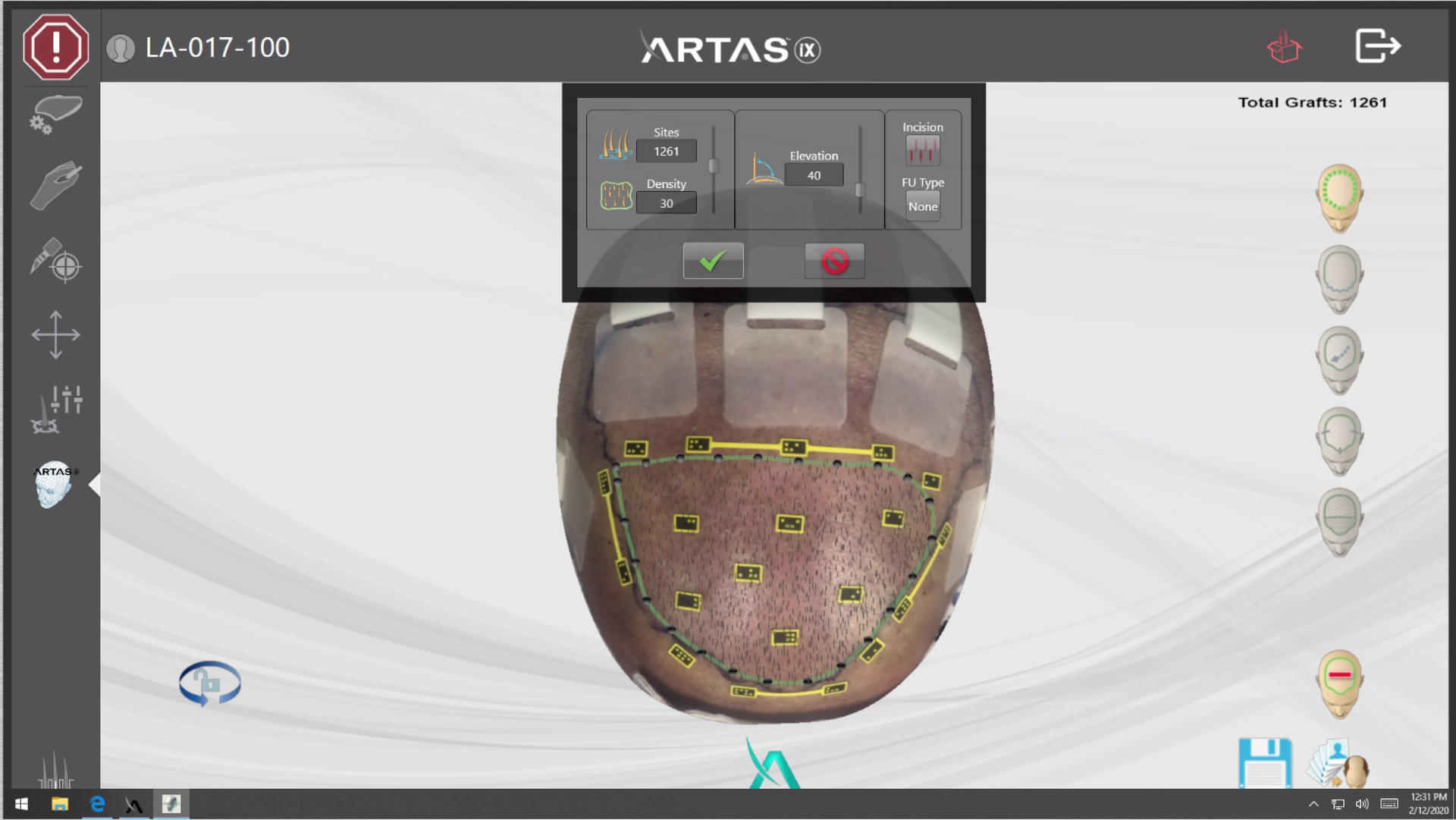

    • 3D Pre-Operative Planning enables physicians to customize and prescribe the recipient area design
    • Proprietary, patented, and FDA-cleared system

State-of-the-Art Medical Grade Hardware

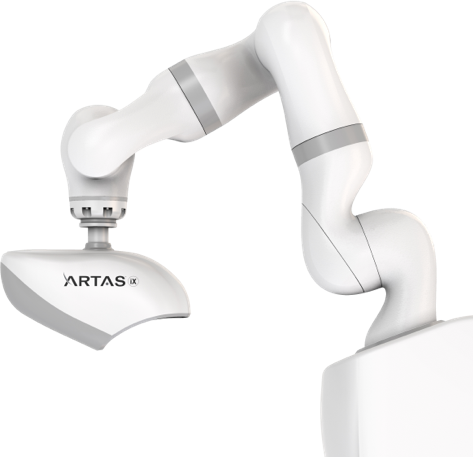

The 7-axis KUKA robotic arm delivers high dexterity and efficient movement with 0.1mm repeatability

  • MORE
    • Proprietary Ultra Punch with multi-faceted tip and controlled variable coring speed algorithm efficiently dissects with less potential trauma to follicular structure and yields robust grafts
    • Compact and streamlined ergonomic design minimizes the footprint and facilitates clinical efficiency

The Results Speak for Themselves

All of the before-and-after photos for our hair restoration treatments are from certified Venus providers showcasing real patient results. Images are never edited or altered.

Tech Specs

Technology

  • Device

    Length: 34 inches (86.36 cm)


    Width: 23 inches (58.42 cm)


    Height with Robotic Arm (nominal position): 59 inches (149.86 cm)


    Cart Weight: 400 lbs. (181.437 kg)


    Electrical: 100-240 VAC, single phase, 50/60 Hz, 15A


    Continuous Use: Yes


    Vacuum: 20.00 ≤ Vacuum [In-Hg] ≤ 30.40


    Connectivity: Ethernet


    FDA Classification: Class II


    Warranty: 1-year manufacturer’s warranty


    Supply Connection: Detachable power cord


    Water Ingress: IPX0 (ordinary, not protected equipment)


    Type B Equipment: Body


    Temperature: Operating: 15°C to 30°C

    Storage: 0° C to 50° C


    Humidity:

    Operating: 20% to 80% non-condensing Storage: 0% to 90% non-condensing


    Atmospheric Pressure: 416 Kpa abs max


    Operation Mode: Continuous, as defined by IEC 60601-1.


    Biocompatibility: All patient-contacting materials have been evaluated in accordance with ISO 10993-1 Biological Evaluation of Medical Devices and found to be biocompatible.


    Compliance Standards:

    Safety: EN 61010-1, EN 61010-081; 60601-1

    EMC: EN 61326-1; EN 60601-1-2

ARTAS® iXi Robotic Hair Restoration System

  • “What better of a testimonial can I give about the benefits of an ARTAS® Robotic hair transplant than having it performed on me? I recently had my hairline lowered using ARTAS® with fantastic results! Now, I’m not only a hair restoration surgeon but a hair transplant patient as well!”

    Dr. Robert Leonard, FISHRS, FAACS

Speak To An Expert

To book a consultation or a demo, please contact us by clicking the button below and a representative will reach out to you directly.

INDICATIONS FOR USE:


ARTAS iX™ has CE Mark with indication for use for harvesting hair follicles from the scalp in men diagnosed with androgenic alopecia (male pattern hair loss) who have black or brown straight hair. ARTAS iX™ is intended to assist physicians in identifying and extracting hair follicular units from the scalp during hair transplantation; creating recipient sites; and implanting harvested hair follicles.
