Venus Versa™

MORE
- NanoFractional skin resurfacing allows the operator to customize ablation and coagulation settings. Radio frequency energy is delivered into the skin, creating micro-channels surrounded by intact tissue, which promote faster wound healing, little-to-no downtime, and reduces the risk of post-inflammatory hyperpigmentation (PIH).
- SmartScan™ technology uses a unique algorithm and pattern selection technology that enables the operator to generate customized patterns for maximum flexibility and patient safety.
- Improves the appearance of textural skin conditions such as scars (including acne scars), rosacea, striae, uneven skin texture, enlarged pores, dyschromia, and pigmentation.

MORE
- Photorejuvenation/Photofacial: Effectively target & treat vascular and pigmented lesions on the skin.
- Hair Removal: Efficiently target melanin in the hair shaft for comfortable hair removal treatments.
- Dual-light-guide Acne Treatment: Innovative dual-light-guide technology: blue light targets porphyrin caused by Propionibacterium Acnes bacteria, leading to the destruction of the P. Acnes bacteria, while the red light promotes faster healing and effectively decreases inflammation.

MORE
- With the capabilities of multi-polar radio frequency applicators, the Venus Versa™ uses a complex algorithm to deliver homogeneous energy and volumetric heating to multiple tissue depths, allowing for quick and safe buildup of heat and easy maintenance of therapeutic temperature throughout the treatment
- Effect of Multi-Polar RF is enhanced by PEMF, a non-thermal mechanism emitted through the applicator’s electrodes
- Through synergistic (MP)², RF heats and directly stimulates fibroblasts, while PEMF is known to promote angiogenesis and induce fibroblast proliferation through release of the growth factor FGF-2, resulting in increased collagen synthesis²
- (MP)² is therefore effective in collagen remodeling for body contouring via skin tightening, cellulite reduction, and wrinkle reduction, and the creation of new capillaries for renewal of blood supply.

Venus Versa™ offers three unique technologies: Intense Pulsed Light (IPL) with SmartPulse™, NanoFractional Radio Frequency with SmartScan™, and Venus proprietary (MP) ² technology (Multi-Polar Radio Frequency + Pulsed Electro Magnetic Fields).

With the ability to meet today’s most in demand aesthetic treatments the Venus Versa™ is a sound investment for any clinic looking to expand its offerings with one workstation. Our versatile multifunction machine allows you to offer a variety of services, increase patient demand and positively impact your ROI – all factors that will help your practice thrive for years to come.

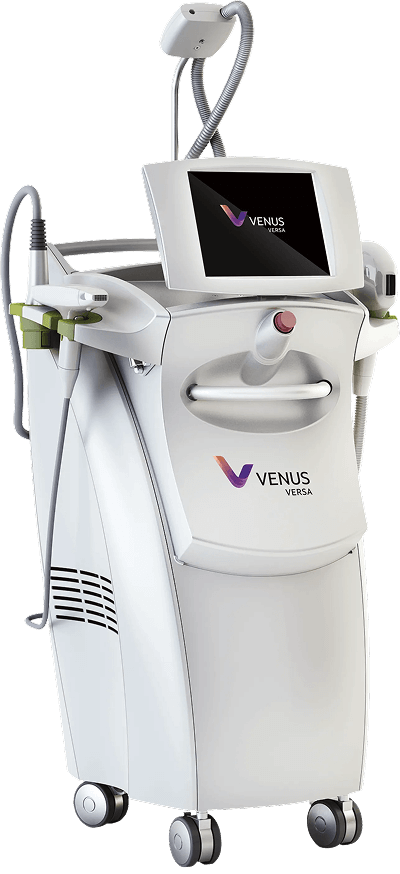

A white machine with wheels is sitting on a white surface.

AC DUAL IPL APPLICATOR

Wavelength - 415-480 nm, 630-950 nm

Optical Fluence - 5-25 J/cm2

Pulse Duration - 10-20 ms

Spot Size - 10 mm x 30 mm

Pulse Repetition Rate - Up to 3 Hz
NANOFRACTIONAL RF™ APPLICATOR

Output RF Frequency - 0.46 MHz

Fuse -3.15A, 250V

Max. Output Energy - 62 mJ/pin

Ablation Depth - Up to 500 microns

Number of Pins - Up to 160
DIAMONDPOLAR™ & OCTIPOLAR™ APPLICATORS

Output RF Frequency - 1MHz

RF Output Power- 0-150 Watts

Number of (MP)2 Synthesizers - Up to 8

Magnetic Pulse Frequency - 15 Hz

Pulsed Magnetic Field - Up to 15 Gauss

Device

Electrical Requirements - 100-240 VAC ,12.5A, 50-60Hz, Single Phase

Dimensions - 55 cm x 65 cm x 110 cm / 21.7 in x 25.6 in x 43.3 in (D x W x H)

Weight - 35 Kg / 77.2 lb
SR515 / SR580 IPL APPLICATORS

Wavelength - 515-950 nm, 580-950 nm

Optical Fluence - 5-25 J/cm2

Pulse Duration - 10-20 ms

Spot Size - 10 mm x 30 mm

Pulse Repetition Rate - Up to 3 Hz
HR650 (XL) / HR690 (XL) IPL APPLICATORS

Wavelength - 650-950 nm, 690-950 nm

Optical Fluence - 5-20 J/cm2

Pulse Duration - 20-50 ms

Spot Size - 10 mm x 30 mm (XL: 20 mm x 30 mm)

Pulse Repetition Rate - Up to 3 Hz

INDICATIONS FOR USE:

Venus Versa™ is cleared by the FDA, licensed by Health Canada, and has CE Mark as a multi-application device intended to be used in aesthetic and cosmetic procedures. The SR515 and SR580 applicators are cleared by the FDA, licensed by Health Canada, and have CE Mark for the treatment of benign pigmented epidermal and cutaneous lesions and treatment of benign cutaneous vascular lesions. The HR650/HR650XL and HR690/HR690XL applicators are cleared by the FDA, licensed by Health Canada, and have CE Mark for the removal of unwanted hair and to effect stable long-term or permanent hair reduction for Fitzpatrick skin types I-IV. The AC Dual applicator is cleared by the FDA, licensed by Health Canada, and has CE Mark for the treatment of acne vulgaris. The DiamondPolar™ and OctiPolar™ applicators on the Venus Versa™ system are cleared by the FDA for non-invasive treatment of moderate to severe facial wrinkles and rhytides on females with Fitzpatrick skin types I-IV. The DiamondPolar™ applicator is licensed by Health Canada and has CE Mark for non-invasive treatment of moderate to severe facial wrinkles and rhytides on females with Fitzpatrick skin types I-IV. The OctiPolar™ applicator on the Venus Versa™ system is licensed by Health Canada and has CE Mark for temporary body contouring via skin tightening, circumferential reduction, and cellulite reduction. The NanoFractional RF™ (Viva) applicator is cleared by the FDA, licensed by Health Canada, and has CE Mark for dermatological procedures requiring ablation and resurfacing of the skin.

REFERENCES:

Ponqgsrihadulchai N, Chalermchai T, Ophaswongse S, Pongsawat S, Udompataikul M. An efficacy and safety of nanofractional radiofrequency for the treatment of striae alba. J Cosmet Dermatol. 2016; 1-7.↩

Callaghan, M. J., Chang, E. I., Seiser, N., Aarabi, S., Ghali, S., Kinnucan, E. R., . . . Gurtner, G. C. (2008). Pulsed Electromagnetic Fields Accelerate Normal and Diabetic Wound Healing by Increasing Endog
